NTC Calculator

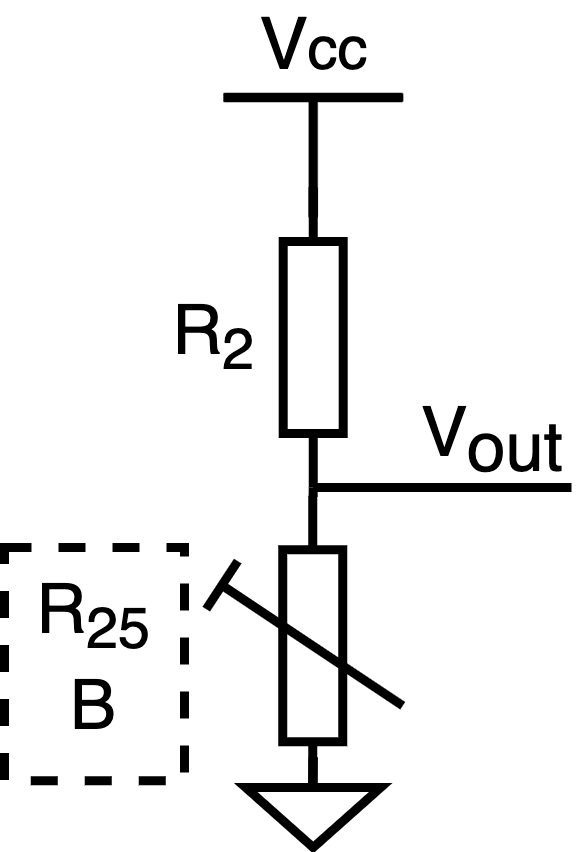

drawing

Equations

Characterise the NTC thermistor using the Beta method.

r=R25exp(BT25)

Calculate the thermistor resistance from voltage and then use this to calculate temperature

R=VoutR2VccVout

T=Bln(R/r)
